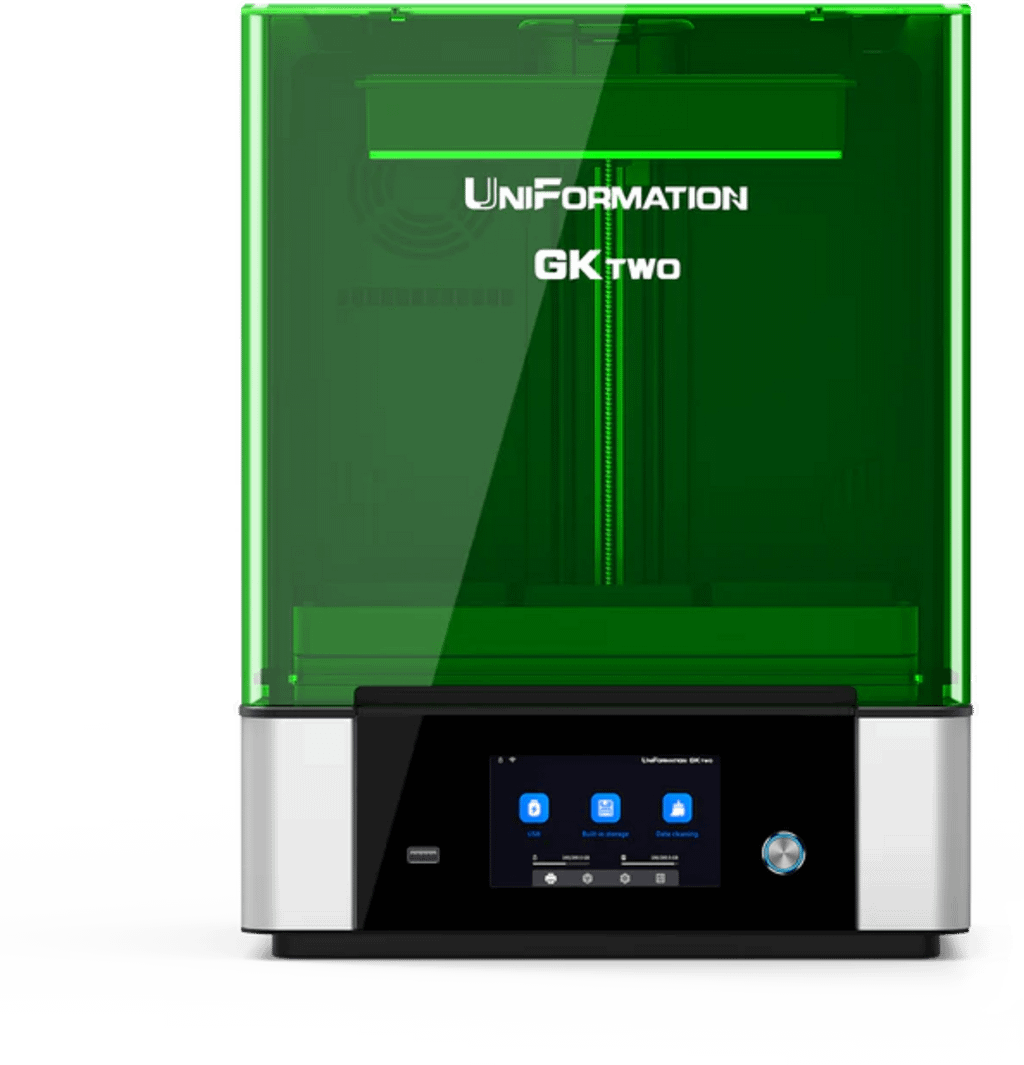

UniFormation GKtwo
-
1: 29.6 µm XY resolution for ultra-fine detail in prints
-
2: 228 x 128 x 245 mm large build volume for versatile projects
-
3: Dual linear rails and thick T-plate for stable and precise printing
-
4: USB, Ethernet, and Wi-Fi connectivity options for flexible operation
Specs
3D Printers
| Printing Technology | MSLA (Masked Stereolithography Apparatus) |
| Build Volume | 228 x 128 x 245 mm |
| Max Printing Speed | 70 mm/hr |
| Extruder Type | Resin LCD |
| Number of Extruders | Single |
| Printer Display | 5-inch touchscreen |
UniFormation GKtwo
💎 PREMIUM RESOLUTION
- 8K Monochrome LCD: 10.3″ screen with 7680 x 4320 pixel resolution for exceptional print clarity and detail
- Ultra-Fine XY Resolution: 29.6 micron XY pixel pitch enables microscopic-level detail impossible on standard 4K systems
- Fast Curing Technology: 2-3 second per-layer exposure at 0.05mm height with 70 mm/hr maximum print speed
- Precision Optics: Linear projection LED module with consistent UV curing across entire build platform
📐 BUILD CAPACITY
- Large Build Volume: 228 x 128 x 245 mm – perfect for jewelry, miniatures, and detailed prototypes
- Dual Linear Rails: Robust steel rails with thick T-plate ensure stable Z-axis motion and perfect layer alignment
- Quick-Release Platform: Spring-loaded build platform with magnetic attachment for rapid part removal and platform changes
- Heated Resin Vat: Integrated temperature control maintains optimal resin viscosity across all seasons and ambient conditions
🔌 SMART FEATURES
- Flexible Connectivity: USB, Ethernet, and Wi-Fi options enable wireless file transfer and remote monitoring
- Multiple Software Support: Compatible with Chitubox, GKtwo Slicer, and Lychee for maximum slicing flexibility
- 5″ Touchscreen Interface: Intuitive control panel with real-time print monitoring and parameter adjustment
- Protective Design: Flip-up lid with safety interlocks and resin-resistant protective film on LCD
🎨 MATERIAL COMPATIBILITY
- Broad Resin Support: Works with all standard 402-405nm UV photocuring resins from any manufacturer
- Wide Wavelength Range: 402.5-405nm operational window accommodates specialized resin formulations
- Advanced Build Plate: Frosted laser-cut surface provides excellent adhesion with minimal support marks
- Thermal Stability: Heated vat prevents temperature-related printing issues typical in colder environments
⭐ THE VERDICT
The UniFormation GKtwo is a professional-grade resin printing workstation designed for creators demanding exceptional detail and reliability. With its 8K resolution, heated vat, quick-change platform, and robust construction, it delivers studio-level printing capabilities. A premium choice for jewelry designers, miniature artists, and prototyping professionals who refuse to compromise on quality.
