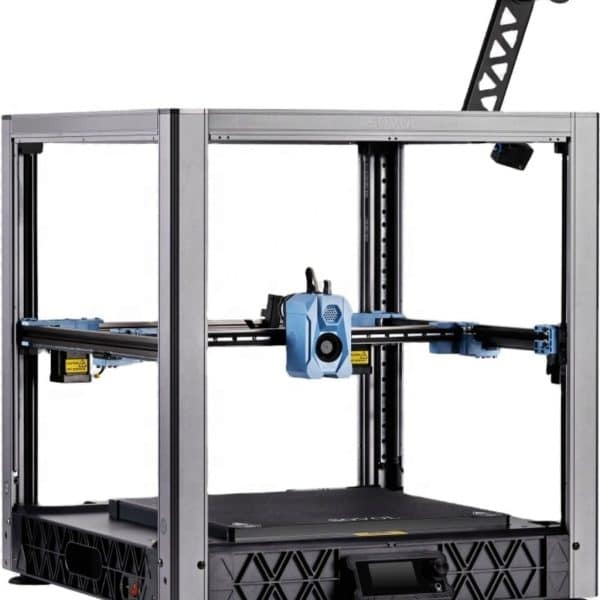

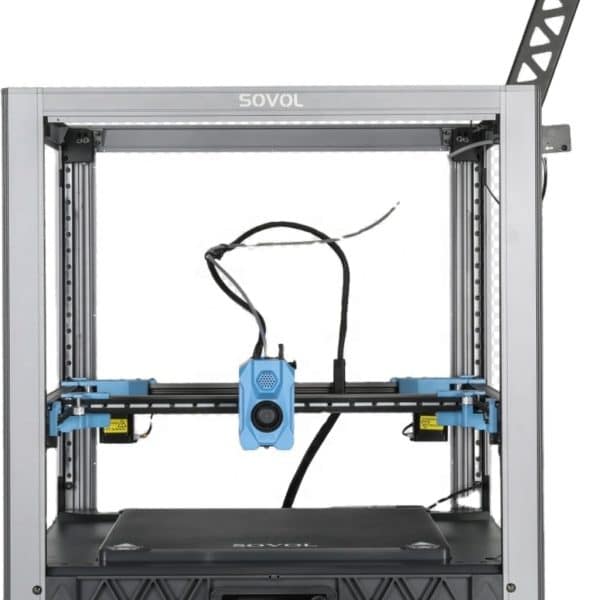

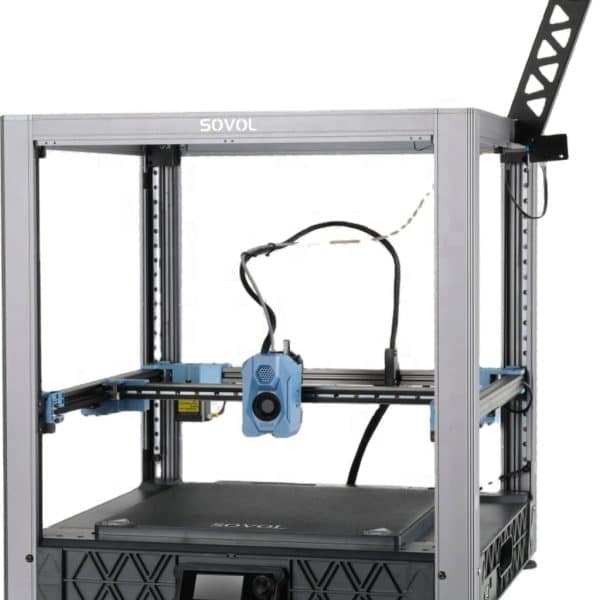

Sovol SV08
-
1: 700 mm/s printing speed with 40,000 mm/s² acceleration
-
2: 350 x 350 x 345 mm build volume for large prints
-
3: Quad Gantry Leveling with 4 independent Z motors
-
4: Klipper firmware with remote monitoring capabilities
Specs
3D Printers
| Printing Technology | FDM (Fused Deposition Modeling) |
| Build Volume | 350 x 350 x 345 mm |
| Max Printing Speed | 700 mm/s |
| Extruder Type | Direct Drive Extruder |
| Number of Extruders | Single |
| Printer Display | 5-inch Color Touchscreen |
Sovol SV08 Highlights
The Sovol SV08 is a high-performance FDM 3D printer designed for enthusiasts and professionals seeking speed, precision, and versatility. Drawing inspiration from the Voron 2.4 design, it combines open-source flexibility with a user-friendly experience.
High-Speed Performance
Equipped with a CoreXY motion system, the SV08 achieves printing speeds up to 700 mm/s and accelerations up to 40,000 mm/s², making it one of the fastest printers in its class.
Generous Build Volume
The printer offers a spacious build volume of 350 x 350 x 345 mm, accommodating large and complex prints with ease.
Advanced Features
- Quad Gantry Leveling: Four independent Z-axis motors ensure precise leveling and stability.
- Linear Rail System: All axes feature linear rails for smooth and accurate motion.
- High-Performance Hotend: A ceramic heater block and AC-powered heated bed provide rapid heat-up times and consistent temperatures.
- Klipper Firmware: Supports advanced features like input shaping and pressure advance for enhanced print quality.
- Remote Monitoring: Built-in camera allows for real-time monitoring and time-lapse recording.
The Sovol SV08 is an open-source, pre-assembled CoreXY 3D printer that delivers exceptional speed and precision, making it a versatile choice for various 3D printing applications.
