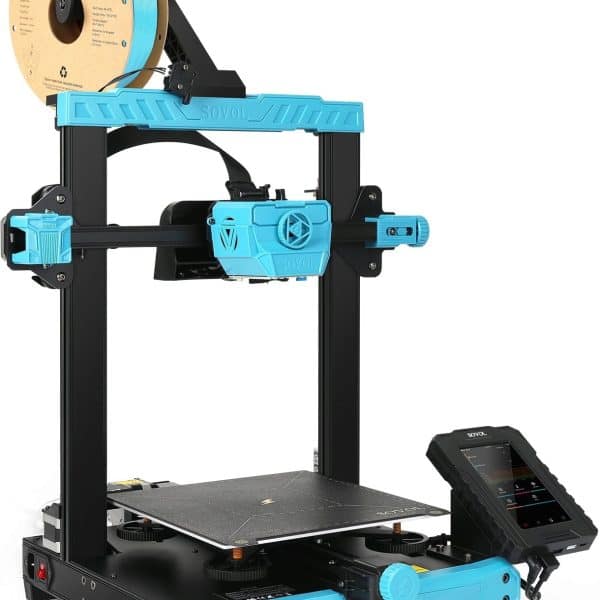

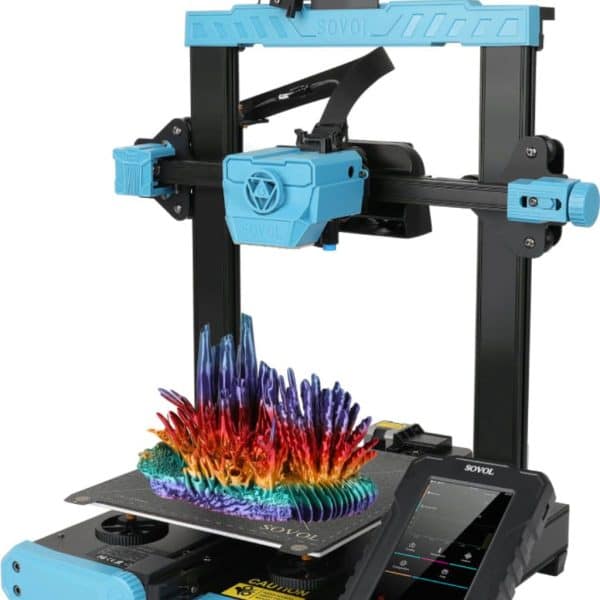

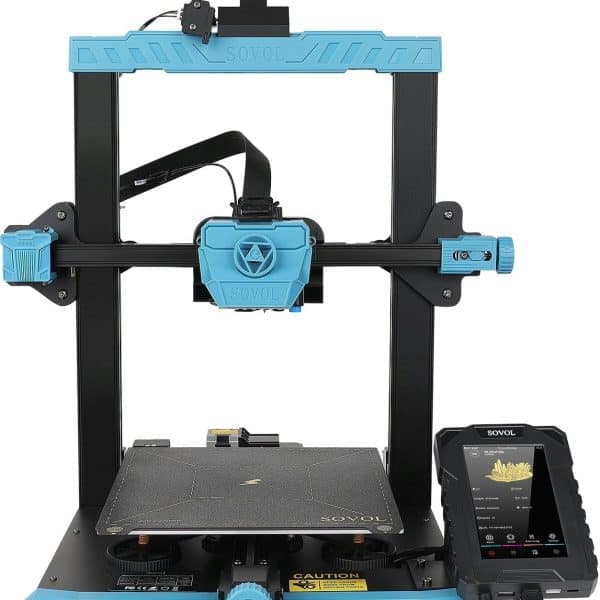

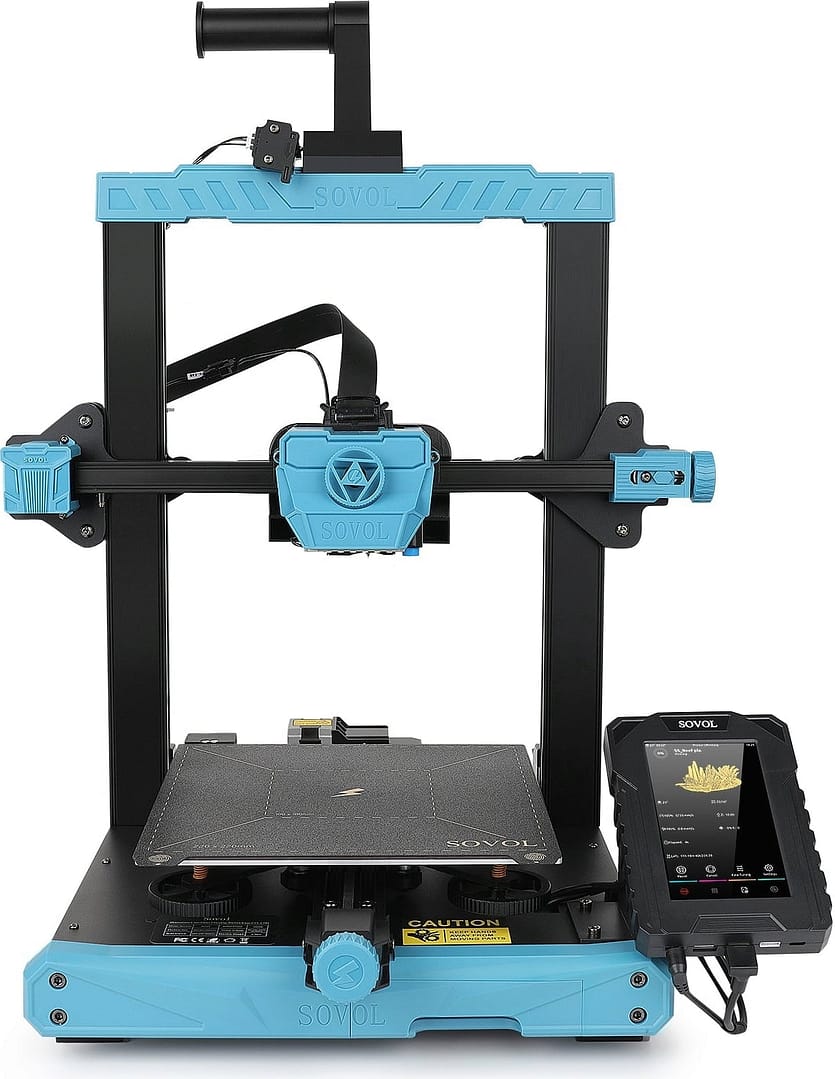

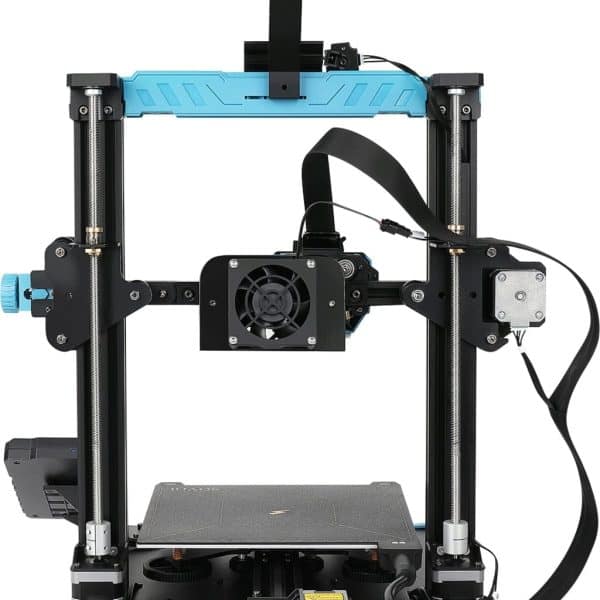

Sovol SV07
-
1: Up to 500 mm/s print speed with Klipper firmware
-
2: 220 × 220 × 250 mm build volume for versatile projects
-
3: 300°C high-flow all-metal hotend supports various filaments
-
4: 25-point auto bed leveling ensures optimal first-layer adhesion
Specs
3D Printers
| Printing Technology | FDM (Fused Deposition Modeling) |
| Build Volume | 220 × 220 × 250 mm |
| Max Printing Speed | 500 mm/s (recommended 250 mm/s) |
| Extruder Type | Planetary Dual-Gear Direct Drive |
| Number of Extruders | Single |
| Printer Display | 5-inch Color Touchscreen (KlipperScreen) |
Sovol SV07 Highlights
The Sovol SV07 is a high-speed FDM 3D printer equipped with Klipper firmware, offering advanced features for both beginners and experienced users seeking efficient and precise printing.
High-Speed Printing with Klipper Firmware
Powered by Klipper firmware, the SV07 achieves impressive print speeds of up to 500 mm/s, with a recommended speed of 250 mm/s for optimal quality. Features like Input Shaping and Pressure Advance ensure smooth and accurate prints even at high speeds.
Generous Build Volume
With a build volume of 220 × 220 × 250 mm, the SV07 provides ample space for a variety of projects, from detailed models to functional prototypes.
All-Metal Direct Drive Extruder
The printer features a planetary dual-gear direct drive extruder with a 5.2:1 gear ratio, ensuring consistent and reliable filament feeding. This setup is compatible with various materials, including PLA, PETG, TPU, and ABS.
High-Temperature Capabilities
Equipped with a 300°C high-flow all-metal hotend, the SV07 can handle a wide range of filaments, expanding your creative possibilities.
Advanced Auto Bed Leveling
The 25-point auto bed leveling system ensures a perfectly leveled bed, enhancing first-layer adhesion and overall print quality.
User-Friendly Interface
The 5-inch color touchscreen running KlipperScreen provides an intuitive interface for easy navigation and control of print settings. Additionally, the printer supports Wi-Fi connectivity for remote monitoring and control.
The Sovol SV07 combines speed, precision, and user-friendly features, making it a versatile choice for various 3D printing needs.
