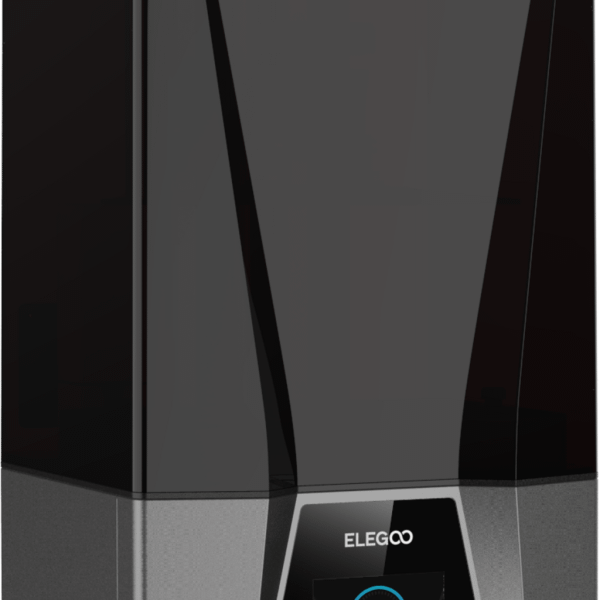

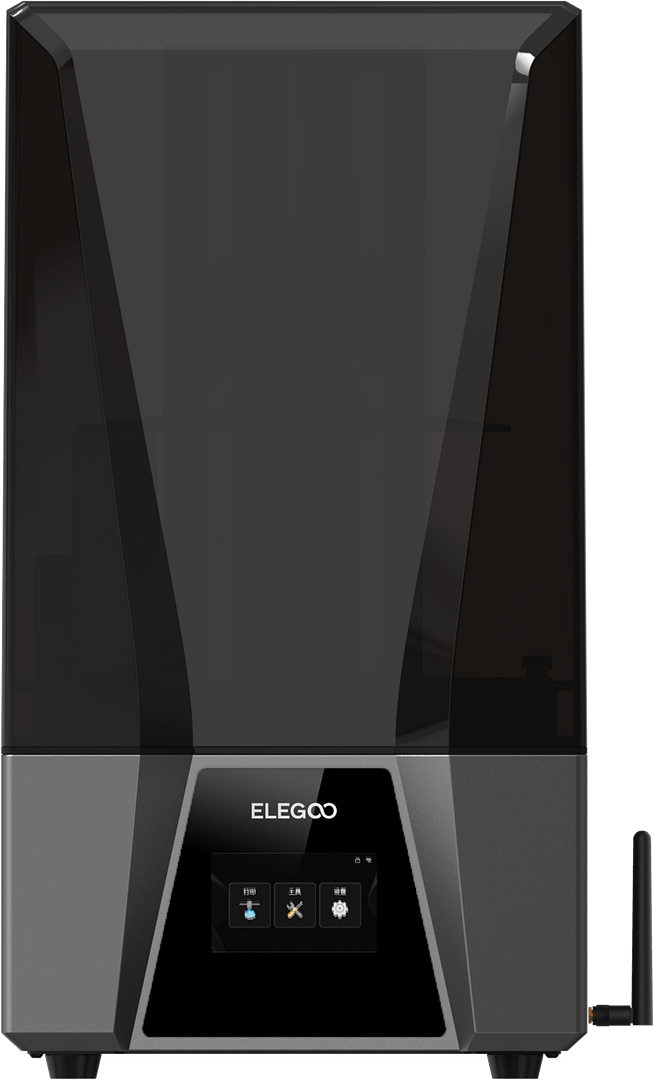

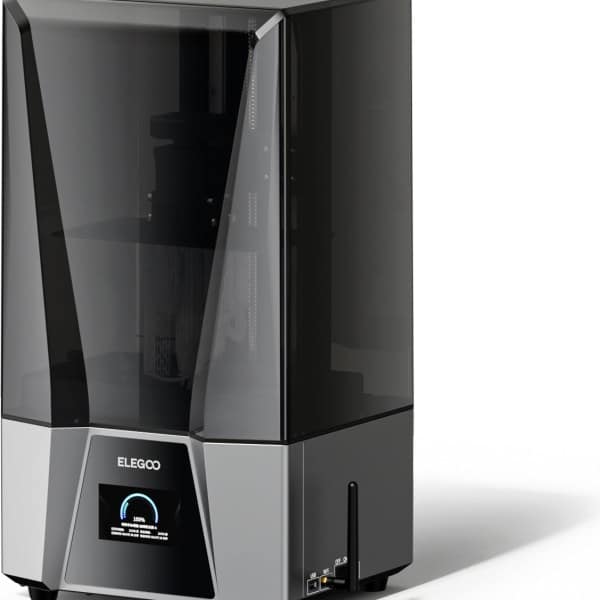

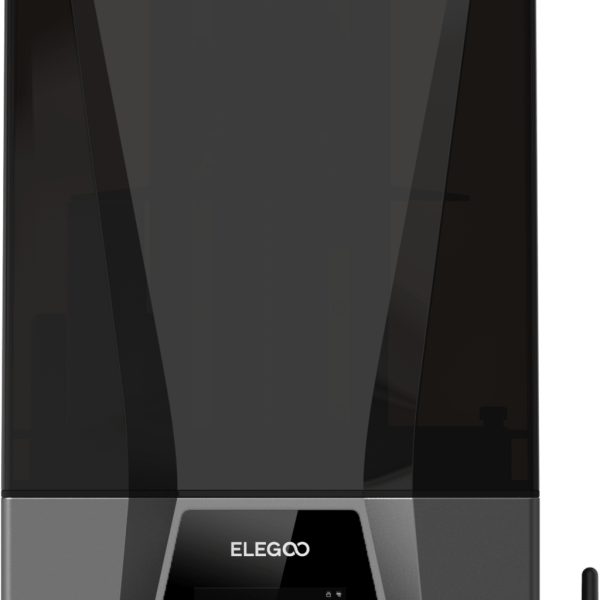

Elegoo Saturn 3 Ultra

Elegoo Saturn 3 Ultra

Brand: Elegoo
Category: 3D Printers
  • 1: 10-inch 12K LCD screen
  • 2: Laser-engraved build platform
  • 3: Enhanced heat dissipation system
  • 4: USB air purifier

Specs

3D Printers

Printing Technology SLA
Build Volume 218.88 x 122.88 x 260 mm
Max Printing Speed 150 mm/h
Printer Display Touch Display



Elegoo Saturn 3 Series Highlights

The Elegoo family has grown richer with the Saturn 3 series. Their user-friendly MSLA 3D printers, Saturn 3 and Saturn 3 Ultra, break ranks with their incredible 12K HD resolution and guarantee endless details, sharp corners and edges, as well as smooth surfaces!

12K Resolution for Highly Detailed Model Surfaces

The Saturn 3 Ultra is equipped with a 10-inch monochrome LCD display. With an LCD resolution of 12K (11520 x 5120 pixels) and xy resolution of 19 x 24 mm, the resin printer achieves incredible results with razor-sharp detail, even on intricate models. An explosion-proof, abrasion- and scratch-resistant 9H tempered glass display protector ensures that the LCD is protected from scratches as well as damage from leaking or penetrating resin.

Large Build Volume for Greater Productivity

With a build volume of 218.88 x 122.88 x 260 mm, you can try your hand at creative projects with larger models or several small models at once.

Refractive COB Light Source

The printer combines a COB light source with a refractive lens. This not only reduces light scatter but also makes the light distribution more uniform, resulting in smoother surfaces.

4-Point Levelling

Saturn 3 Ultra features an easy-to-use 4-point levelling system operated by four clockwise tightening screws. One-time levelling is quite enough here!

Laser Engraved Build Plate

The build plate of the Saturn 3 Ultra is laser engraved. It not only provides excellent adhesion and easy removal of the printed models but also the perfect first layer. The build platform screws are protected from resin leakage with end caps.

Special ACF Release Film for Fast Printing

A sophisticated low-release tension ACF release liner specially designed for Saturn 3 Ultra is laid out for fast printing. It is matted on one side and smooth on the other. When printed with ELEGOO FAST standard resin, speeds of up to 150 mm/h can be achieved.

Stable Z-axis for High Printing Speeds

The Z-axis of the Saturn 3 Ultra features an integrated ball screw and a double linear guide rail. Even at high printing speeds of up to 150 mm/h, it ensures precise and smooth movements as well as high printing success.

4-inch Touchscreen

Saturn 3 Ultra is equipped with a 4-inch HD IPS touchscreen with a resolution of 800 x 480 pixels. It uses a user-friendly UI interface and supports 12 languages: Chinese, English, Japanese, Korean, Portuguese, Russian, Turkish, German, Spanish, French, Dutch, and Italian.

USB Plug-in Air Purifier with Activated Carbon Filter

To absorb and filter harmful and unpleasant resin odours during printing, the Saturn 3 Ultra features a built-in USB plug-in air purifier with an activated carbon filter. An additional USB port allows the connection of another air purifier.

Optimized Heat Dissipation System

The effective heat dissipation system of the Saturn 3 Ultra is equipped with double heat pipes and a large cooling fan. This ensures better heat conduction on the one hand, and optimal heat dissipation on the other. For more performance and a longer service life.

Compatibility with MARS MATE Air Purifier

The Saturn 3 Series is compatible with the MARS MATE Air Purifier. The air purifier improves the printing environment and provides fresh air.

User-Friendly Design

The Saturn 3 Ultra has great technical features, as well as practical design features. It has adjustable feet, which allows it to be placed on uneven surfaces.

Powerful Linux Operating System

The resin printer is equipped with the new Linux OS with 4G RAM. The user-friendly operating system works incredibly fast and ensures stable data transfer for smooth printing processes.

Data Transfer via WiFi

In addition to USB, Saturn 3 Ultra supports data transfer via WiFi, while it is compatible with 2.4G and 5G networks. Files can be transferred at a speed of 6-10 M/s from both a smartphone and a PC. There is also a detachable antenna on the right side of the printer.

Voxeldance Tango Slicer Software

The resin printer uses Elegoo’s proprietary Voxeldance Tango Slicer software and an open-source GOO slice file format. Three different printing modes are offered for maximum flexibility and better printing efficiency.
