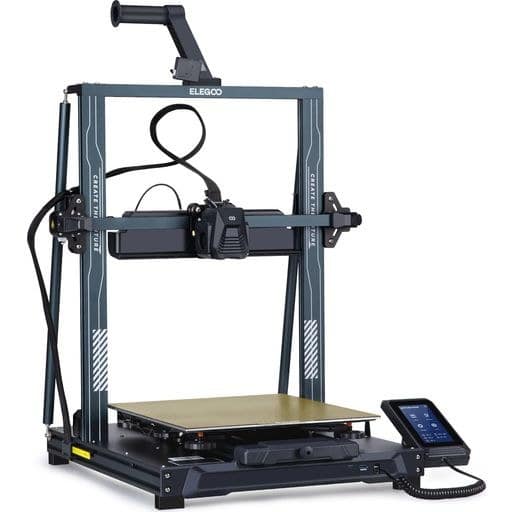

Elegoo Neptune 4 Plus

Elegoo Neptune 4 Plus

Brand: Elegoo
Category: 3D Printers
  • : Klipper firmware
  • : Max. speed 500 mm/s
  • : Build volume 320 x 320 x 385 mm
  • : Dual gear direct drive extruder

Elegoo Neptune 4 Plus: Ultra-Fast 3D Printing with a Massive Build Volume

Introducing the Elegoo Neptune 4 Plus, an ultra-fast FDM 3D printer boasting a generous build volume of 320 x 320 x 385 mm. With a maximum speed of 500 mm/s, an acceleration of 12,000 mm/s², and Klipper firmware, this powerful printer lets you explore new dimensions of creativity!

Key Differences: Neptune 4 Plus vs. Neptune 4 Max

  • Build Volume: 320 x 320 x 385 mm (Neptune 4 Max: 420 x 420 x 480 mm)
  • Heated Bed: Heats up to 110 °C (Neptune 4 Max: 85 °C)
  • LED Lights: 24 LEDs (Neptune 4 Max: 30 LEDs)

Tip: Check the table at the bottom for a detailed comparison of the technical specifications of both printers.

Features at a Glance:

  • Enormous Build Volume: 320 x 320 x 385 mm for more creative freedom
  • Pre-installed Klipper Firmware: Standard speed of 250 mm/s, max speed of 500 mm/s, and max acceleration of 12,000 mm/s²
  • Input Shaping & Pressure Advance: For enhanced print quality
  • Innovative Acceleration Sensors: On the X and Y axes for automatic calibration
  • High-Speed Motherboard: ARM 64-bit quad-core processor with 1.5 GHz clock speed
  • Direct Dual-Gear Extruder: With a 5.2:1 gear ratio for stronger extrusion force
  • High-Temp Nozzle Kit: For temperatures up to 300 °C
  • Efficient Cooling System: With fans running at 9600 rpm

Enormous Build Volume for Endless Creations

With a build volume of 320 x 320 x 385 mm, the Neptune 4 Plus provides ample space for creating unique models in unprecedented dimensions, accommodating both large models and multiple smaller objects.

Pre-installed Klipper for Higher Speeds

The Neptune 4 Plus comes with Klipper firmware pre-installed, achieving a standard printing speed of 250 mm/s, a maximum speed of 500 mm/s, and an outstanding acceleration of 12,000 mm/s². Features like input shaping and pressure advance further enhance print quality, while acceleration sensors on the X and Y axes enable automatic calibration for improved results.

Klipper High-Speed Mainboard

Powered by a high-speed motherboard with an ARM 64-bit quad-core processor clocked at 1.5 GHz, the Neptune 4 Plus ensures smooth, powerful, and fast printing.

Dual Gear Direct Drive Extruder

The Direct Dual Gear extruder with a 5.2:1 gear ratio delivers stronger extrusion force and more precise printing results.

High-Temperature Capabilities

Designed for temperatures up to 300 °C, the Neptune 4 Plus features a high-temp nozzle kit and automatic calibration of the nozzle PID parameters for precise and constant temperature control. A titanium alloy heatbreak effectively minimizes clogging.

Efficient Cooling System

The cooling system of the Neptune 4 Plus operates at a remarkable 9600 rpm, featuring:

  • 2 x ball bearing 4015 fans
  • 1 x ball bearing 3010 fan
  • 2 x 6025 ball bearing fans

Additional Features:

  • Robust POM V Guide Wheels
  • Y-axis with Double Rows of 3+3 V Wheels
  • Double Y-axis Profile
