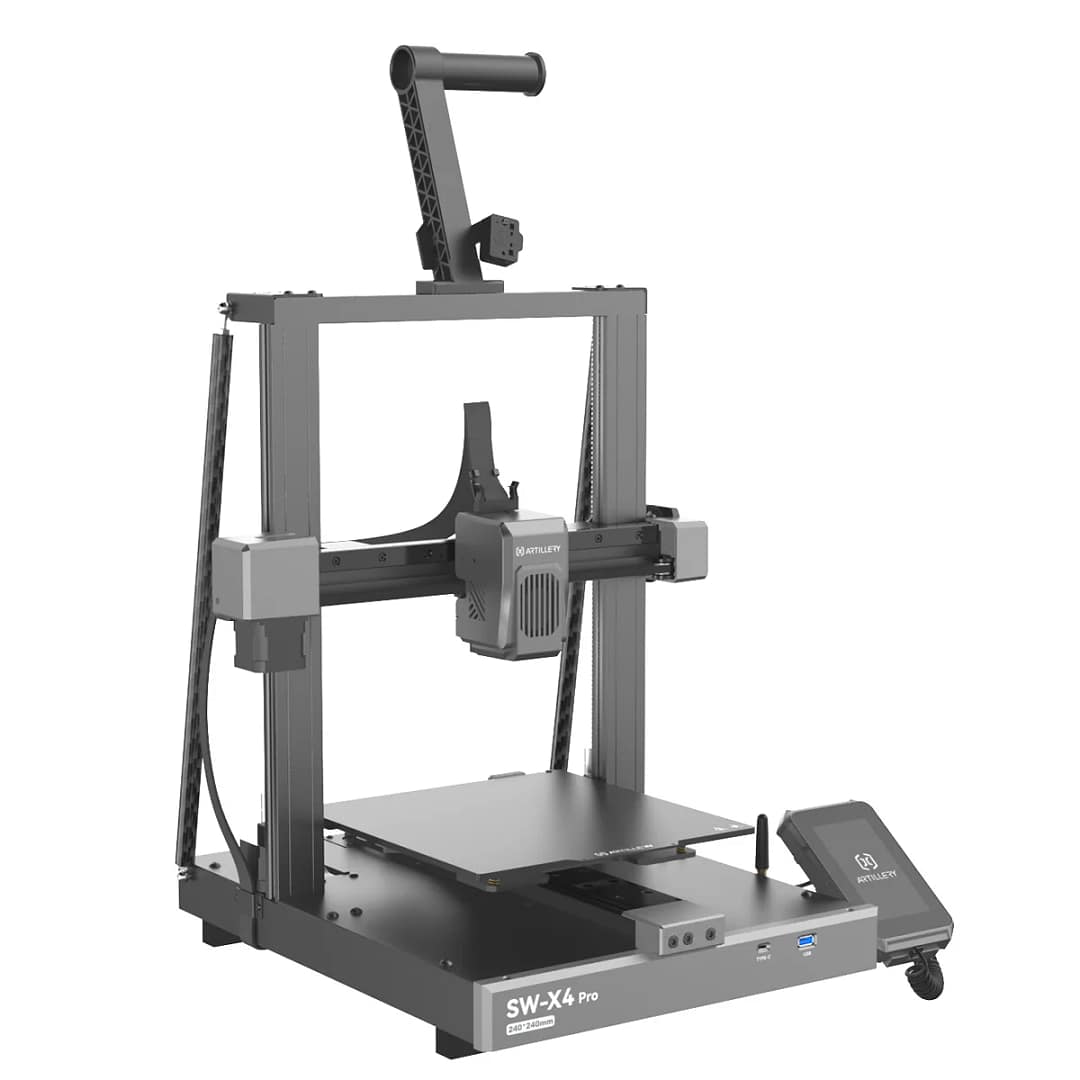

Artillery Sidewinder X4 Pro
-
1: 500 mm/s high-speed printing with 12,000 mm/sĀ² acceleration
-
2: 240 x 240 x 260 mm large build volume for versatile projects
-
3: Dual-gear direct drive extruder with high-temperature hotend supports up to 300Ā°C
-
4: Auto-leveling system and 4.3-inch full-color touchscreen for user-friendly operation
Specs
3D Printers
| Printing Technology | FDM (Fused Deposition Modeling) |
| Build Volume | 240 x 240 x 260 mm |
| Max Printing Speed | 500 mm/s |
| Extruder Type | Dual-gear direct drive |
| Number of Extruders | Single |
| Printer Display | 4.3-inch full-color touchscreen |
Artillery Sidewinder X4 Pro
š EXTREME SPEED
- Ultra-Fast Printing: Achieves up to 500mm/s maximum speed with 12,000 mm/sĀ² acceleration for rapid prototyping and production
- Klipper Firmware: Advanced firmware with Pressure Advance and Input Shaping for vibration-free high-speed printing
- Linear Rail System: All-metal linear rails on X and Y axes eliminate vibration and ensure consistent quality even at extreme speeds
- Dual Z-Axis Motors: Independent Z-axis stepper motors prevent layer shifting and maintain perfect bed leveling at all speeds
š§ PRECISION ENGINEERING
- Build Volume: 240 x 240 x 260 mm – generous working area for complex designs and production batches
- Dual-Gear Direct Drive: High-pressure extruder system with precise extrusion control for filament consistency
- Magnetic PEI Build Plate: Spring-steel system with exceptional adhesion and easy part removal after printing
- 9×9 81-Point Auto-Leveling: Comprehensive automatic bed mesh leveling with manual override for perfect first layers
š MATERIAL VERSATILITY
- High Temperature Capability: Hotend reaches 300Ā°C supporting ABS, PETG, TPU, and advanced engineering materials
- Thermal Bed Support: 110Ā°C maximum bed temperature ensures strong adhesion for demanding materials
- Wide Filament Compatibility: Successfully prints PLA, ABS, PETG, TPU, and carbon fiber-reinforced compositions
- Flexible Extrusion: Dual-gear system optimized for both flexible TPU materials and rigid engineering plastics
š» SMART CONNECTIVITY
- 4.3-inch Full-Color Touchscreen: Intuitive capacitive display with Klipper integration for real-time control and monitoring
- Multiple Connection Options: USB, WiFi, and USB Type-C for flexible file transfer and remote management
- Resume Print Function: Automatically recovers from power losses – essential for long production runs
- Filament Runout Detection: Intelligent sensor pauses printing when filament depletes, preventing failed prints
ā THE VERDICT
The Artillery Sidewinder X4 Pro is a speed-focused FDM powerhouse that delivers exceptional value for makers seeking rapid prototyping capabilities. With its aggressive acceleration, linear rail stability, and Klipper firmware intelligence, it achieves performance metrics typically found in machines costing double the price. Perfect for makers, engineers, and small production operations who demand velocity without sacrificing quality.
